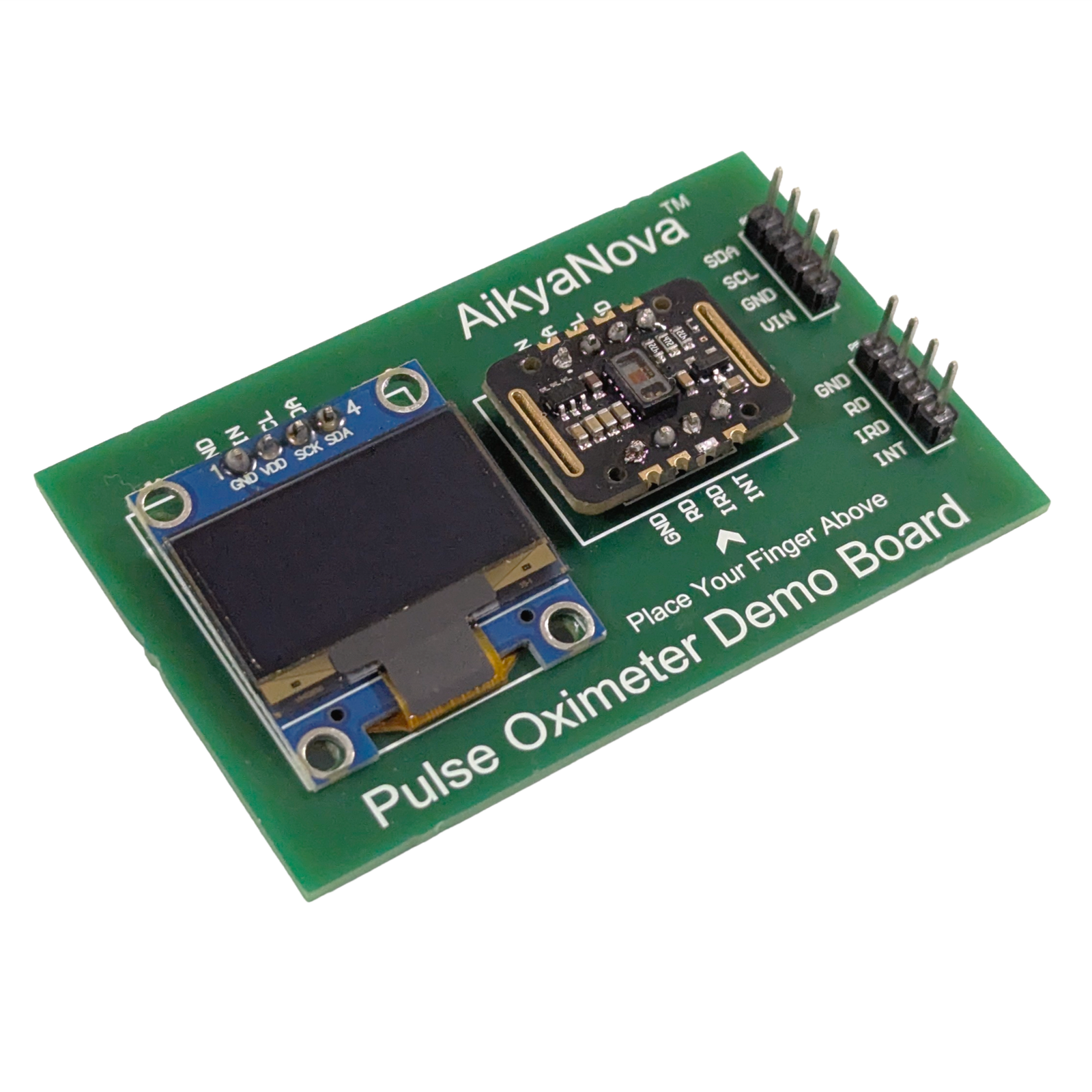

MAX30102 PPG SpO₂ Sensor Kit
Pulse Oximeter Demo Board
Heart Rate & Blood Oxygen Learning Module with 0.96" OLED · Pre-Soldered I²C Breakout · Plug & Play · Code & Tutorials Included · Biomedical Project Kit by AikyaNova™
- •MAX30102 PPG BIOSENSOR + 0.96" OLED: Measures Heart Rate & SpO₂ live on the onboard display — no external screen needed.
- •PLUG & PLAY — No Soldering: Fully pre-soldered with header pins. Just plug into your breadboard and start instantly.

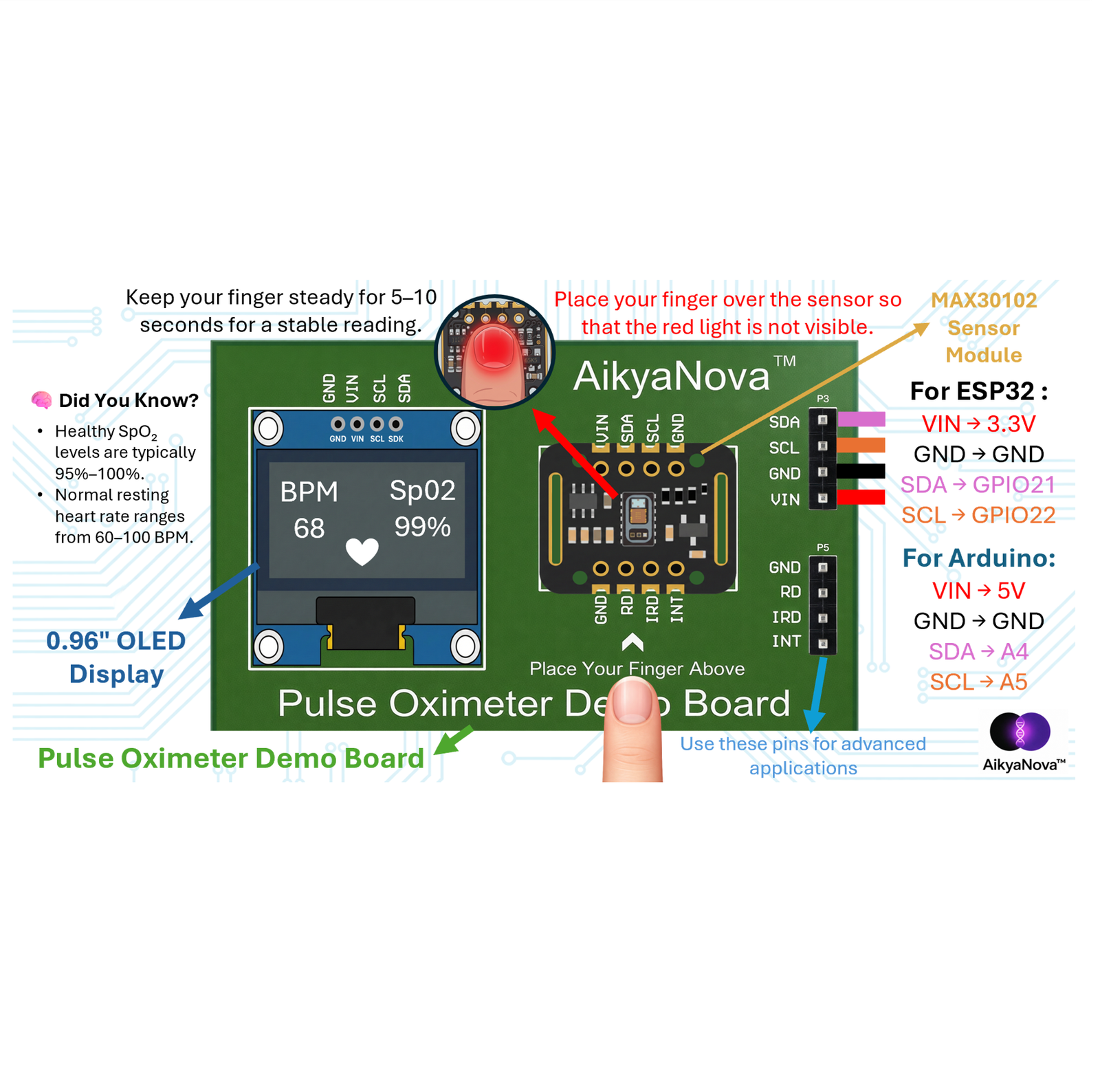

- •UNIVERSAL I²C: Works with any 3.3V / 5V microcontroller — Arduino, ESP32, Raspberry Pi.
- •FREE CODE & TUTORIALS: GitHub repo with sample code & step-by-step guides — up and running in minutes.
- ⚠BIOMEDICAL LEARNING KIT — NOT A MEDICAL DEVICE. For educational & project use only.
Pick the right bundle for you
All variants include the same MAX30102 PPG biosensor with 0.96" OLED. Choose how much you want bundled.

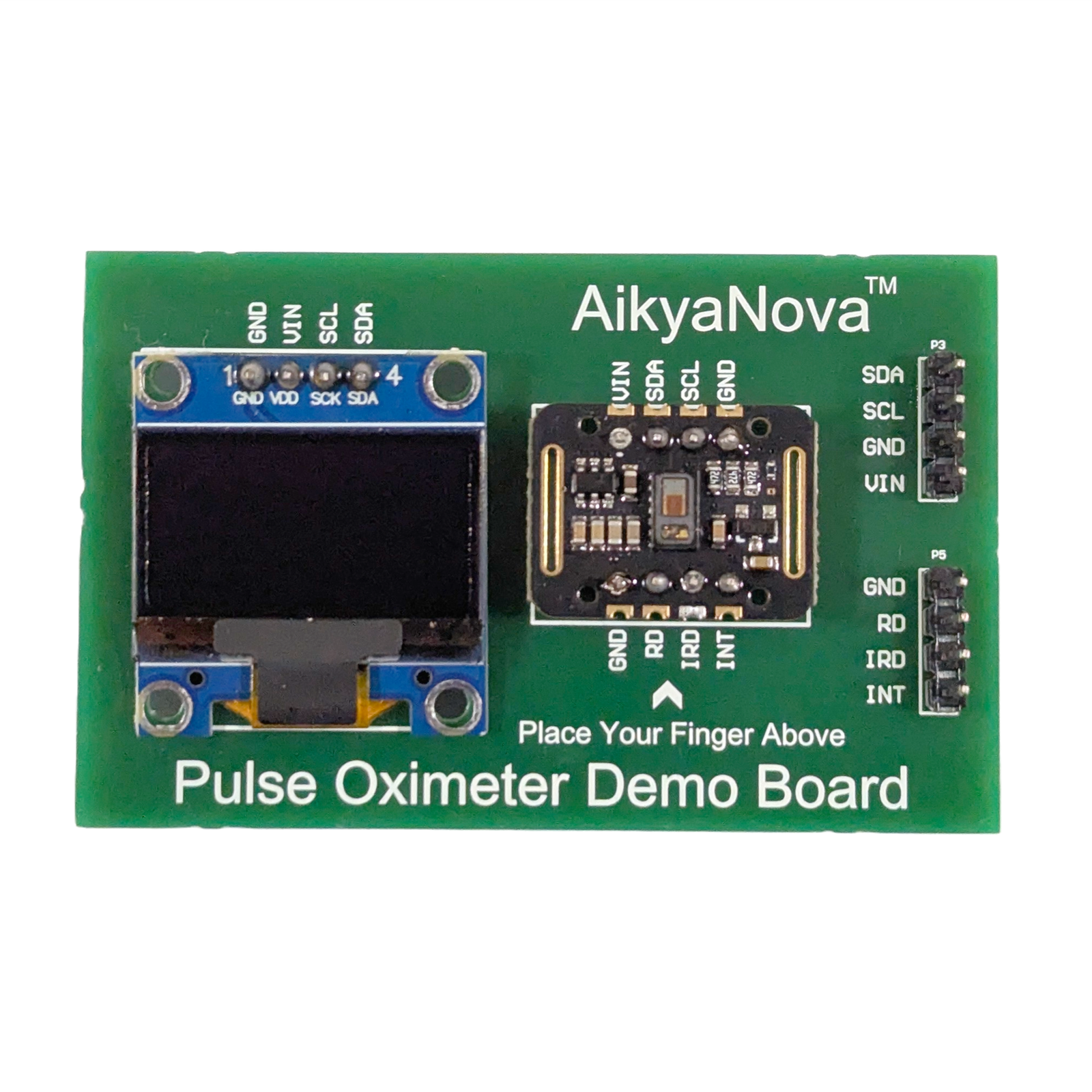

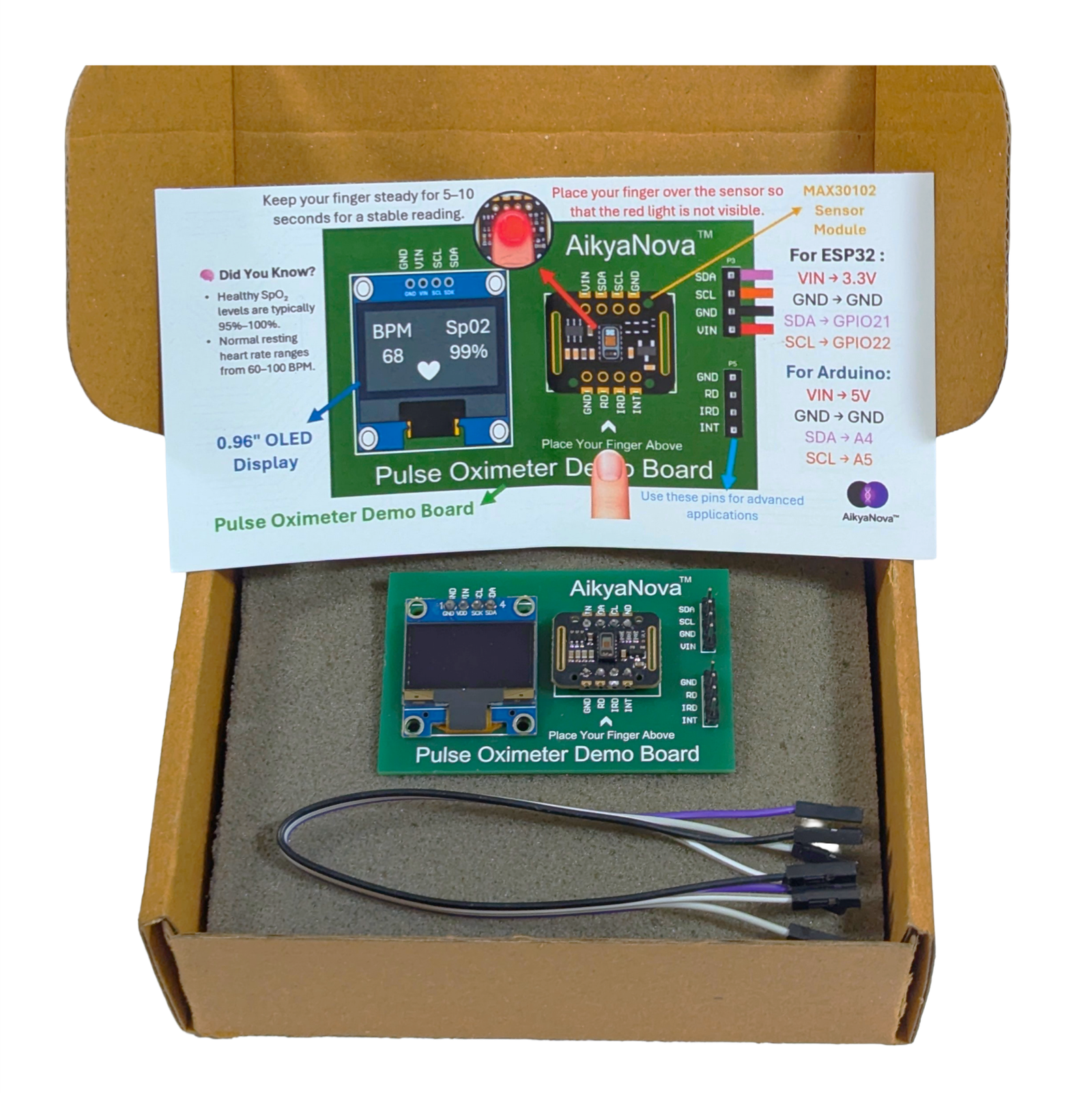

Demo Board
Standalone MAX30102 PPG breakout — bring your own microcontroller
- MAX30102 PPG biosensor (SpO₂ + HR)

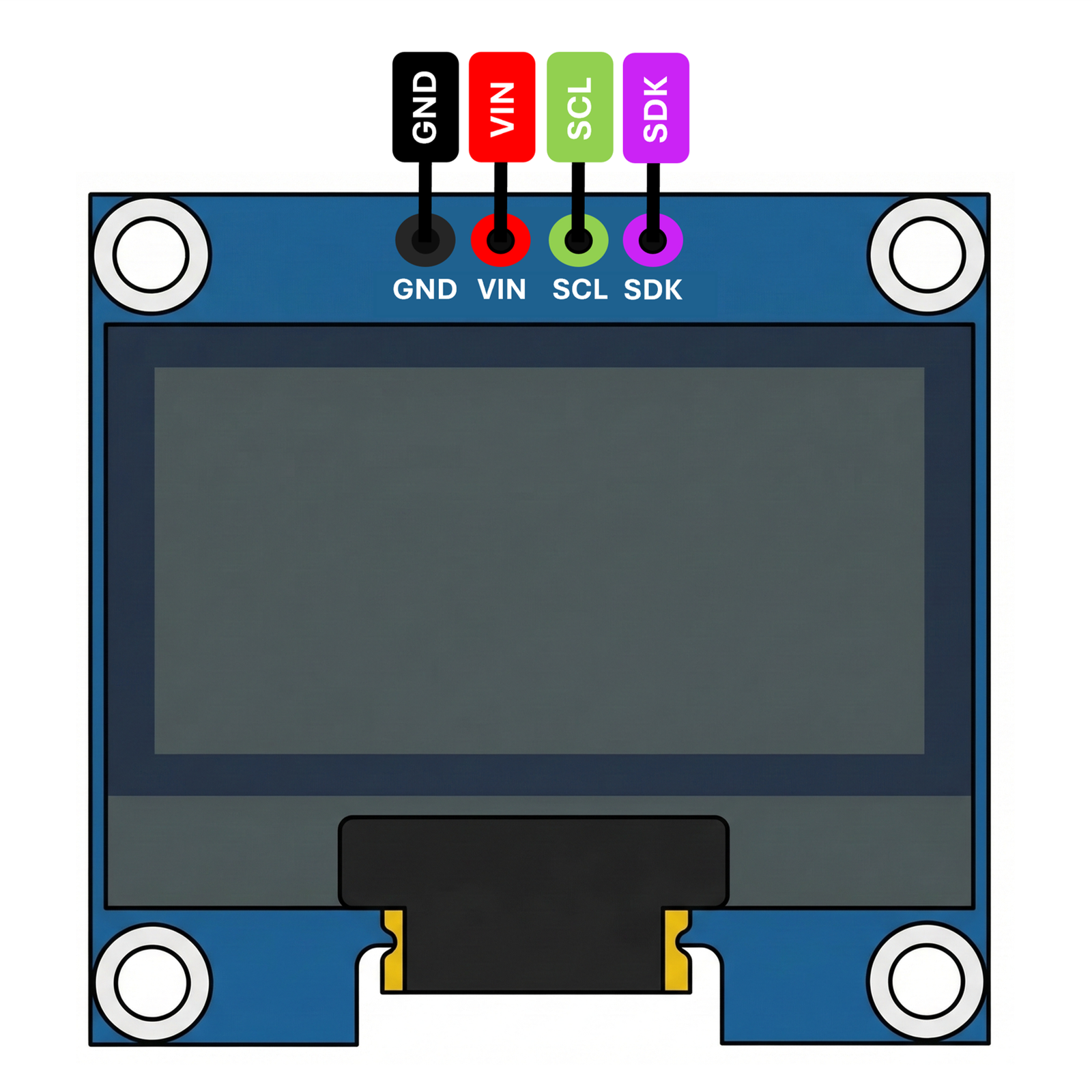

- 0.96" OLED display onboard
- Pre-soldered — plug & play
- I²C — 3.3V / 5V compatible
- Free code & tutorials (GitHub)
- ESP32 not included
- No enclosure

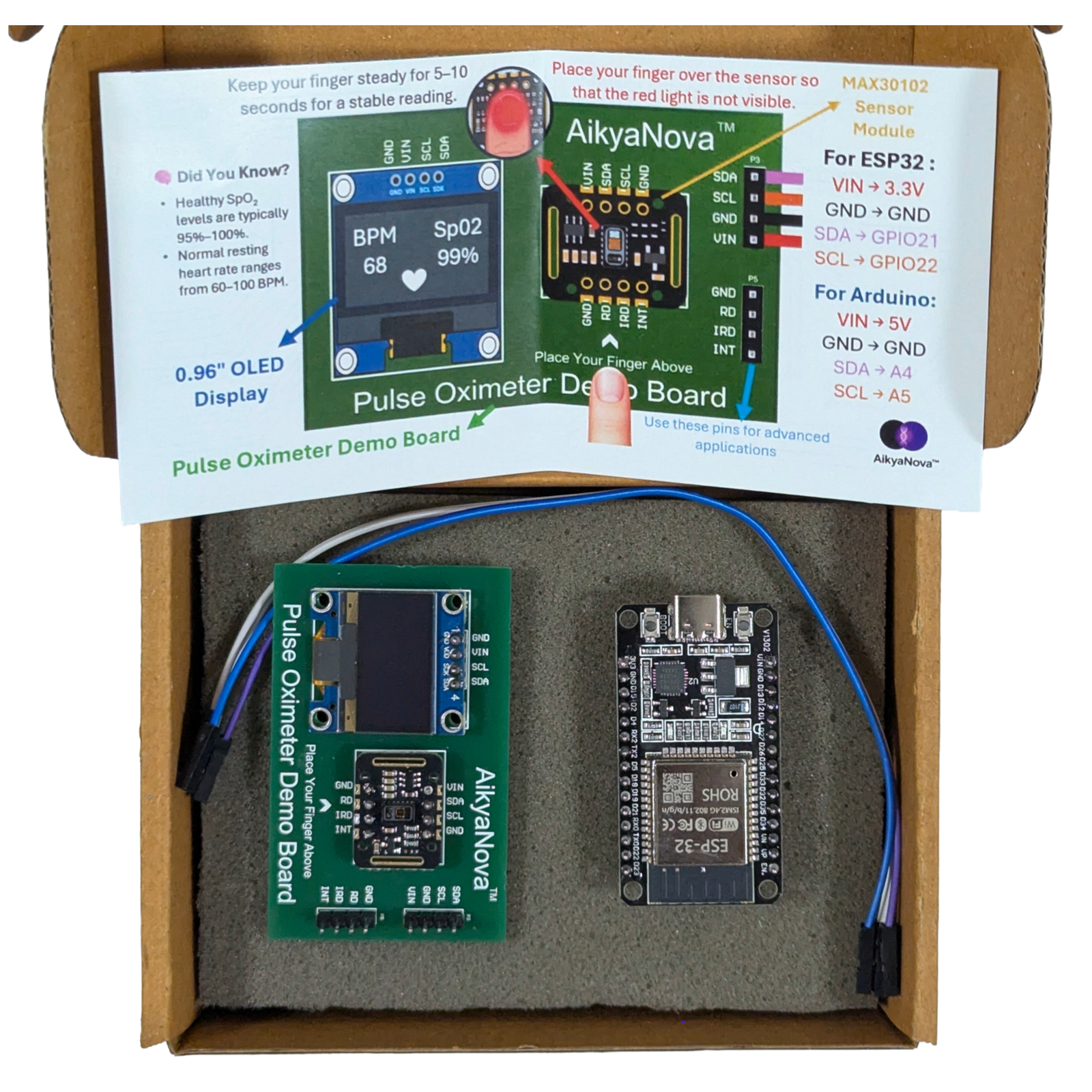

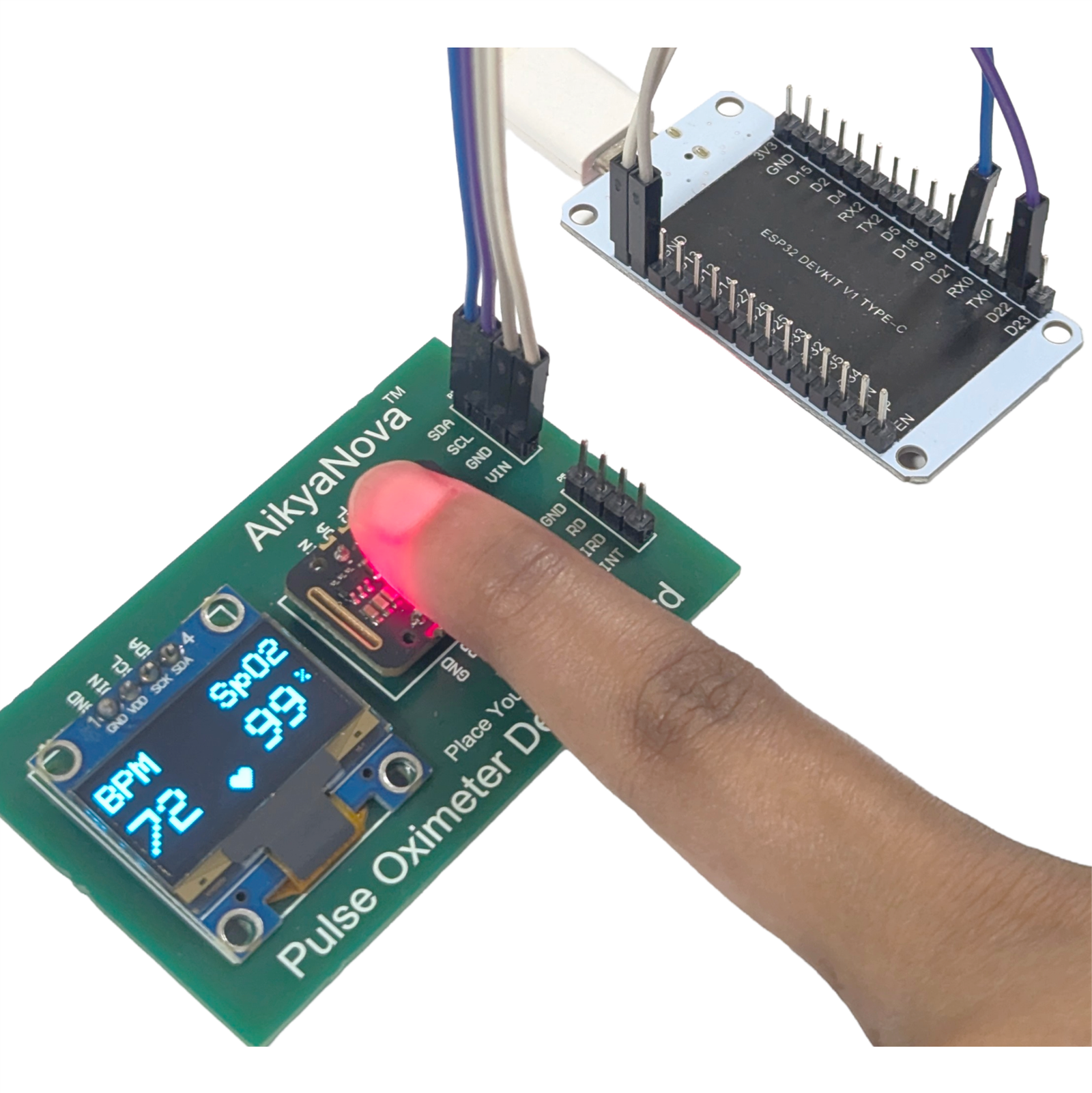

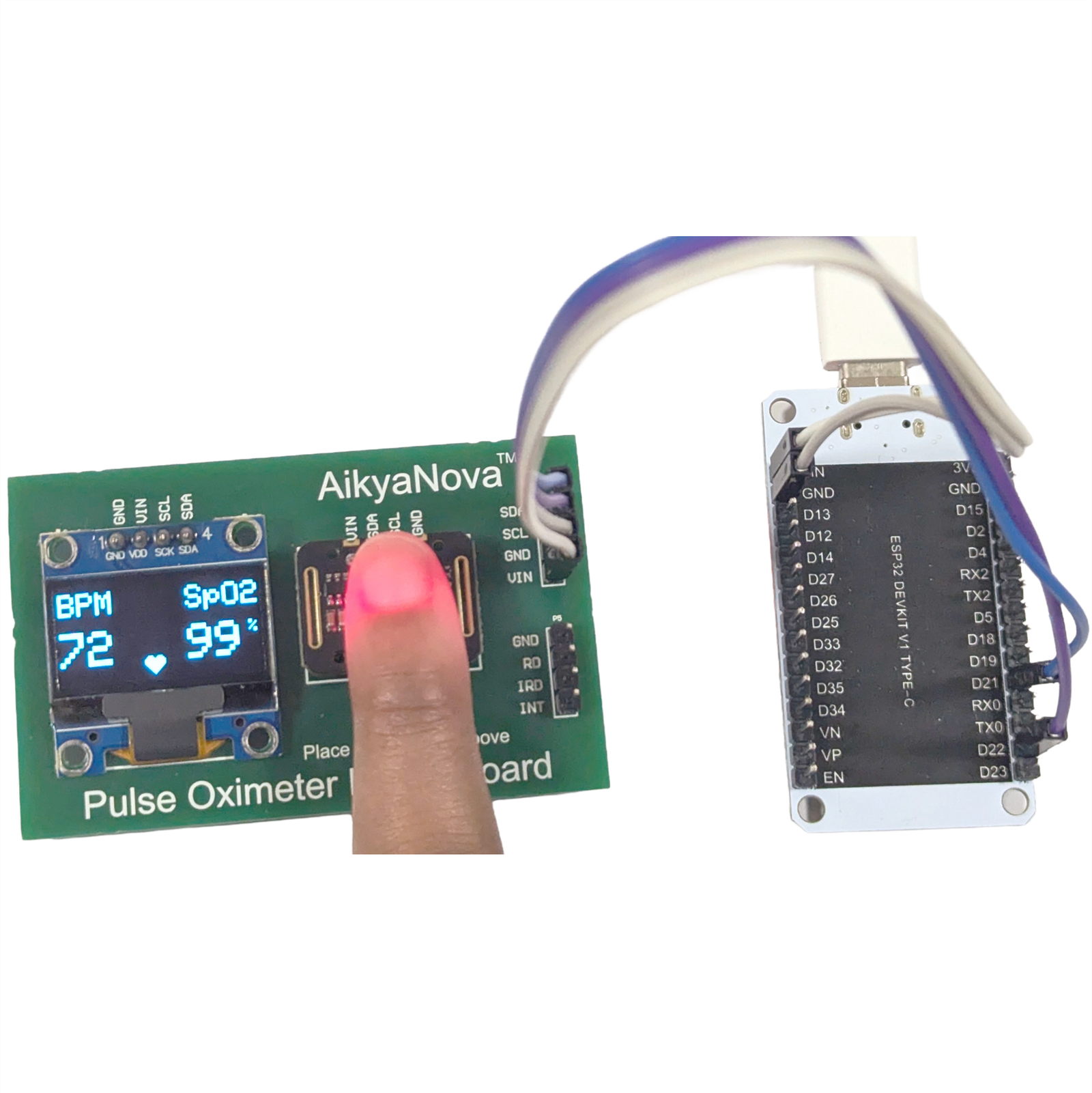

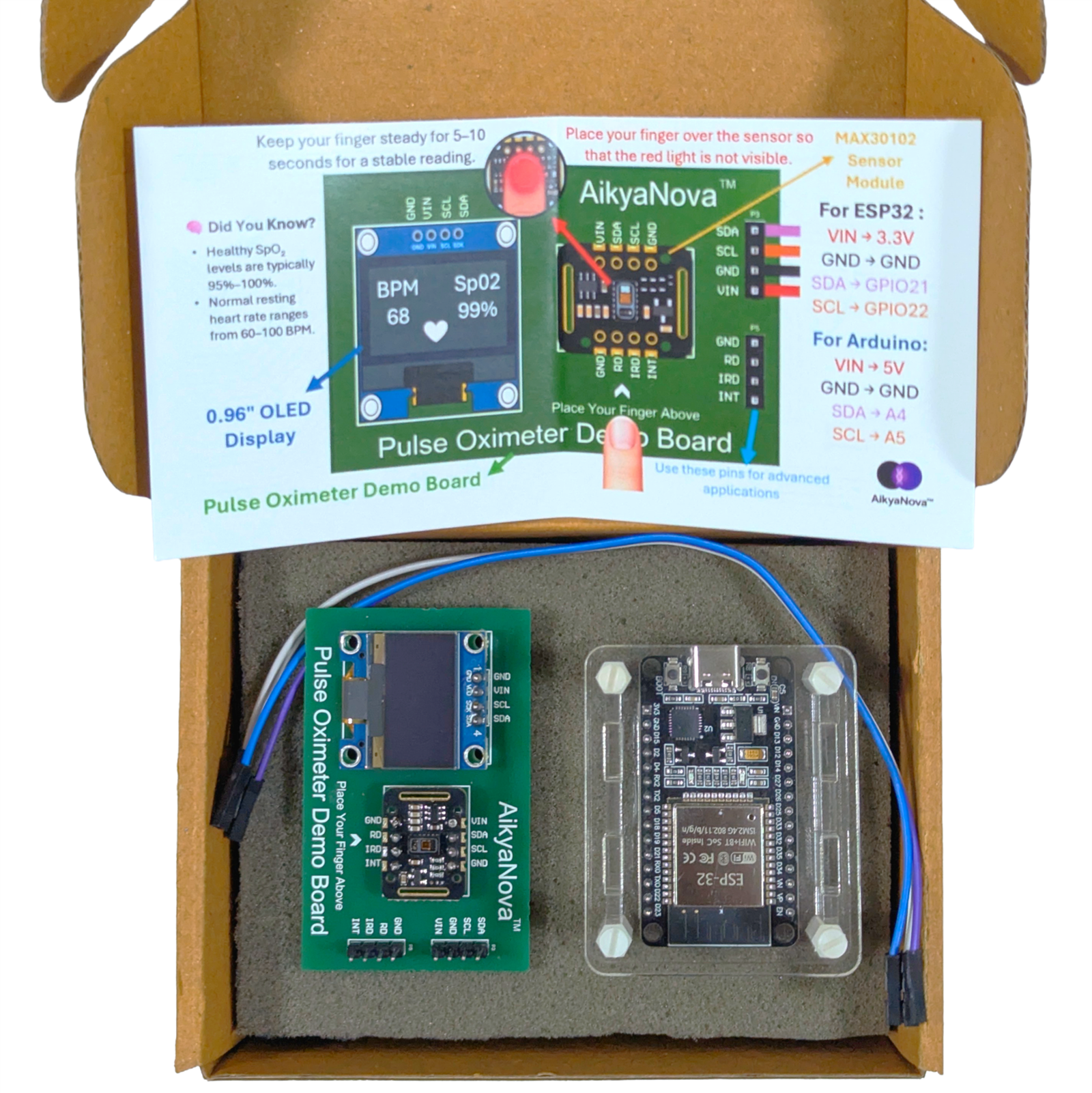

Demo Board + ESP32
Wireless-ready kit — Wi-Fi & Bluetooth, works out of the box
- MAX30102 PPG biosensor (SpO₂ + HR)
- 0.96" OLED display onboard
- Pre-soldered — plug & play
- ESP32-WROOM-32 (Wi-Fi + BT 4.2) bundled
- Pre-flashed demo firmware
- Free code & tutorials (GitHub)
- No enclosure

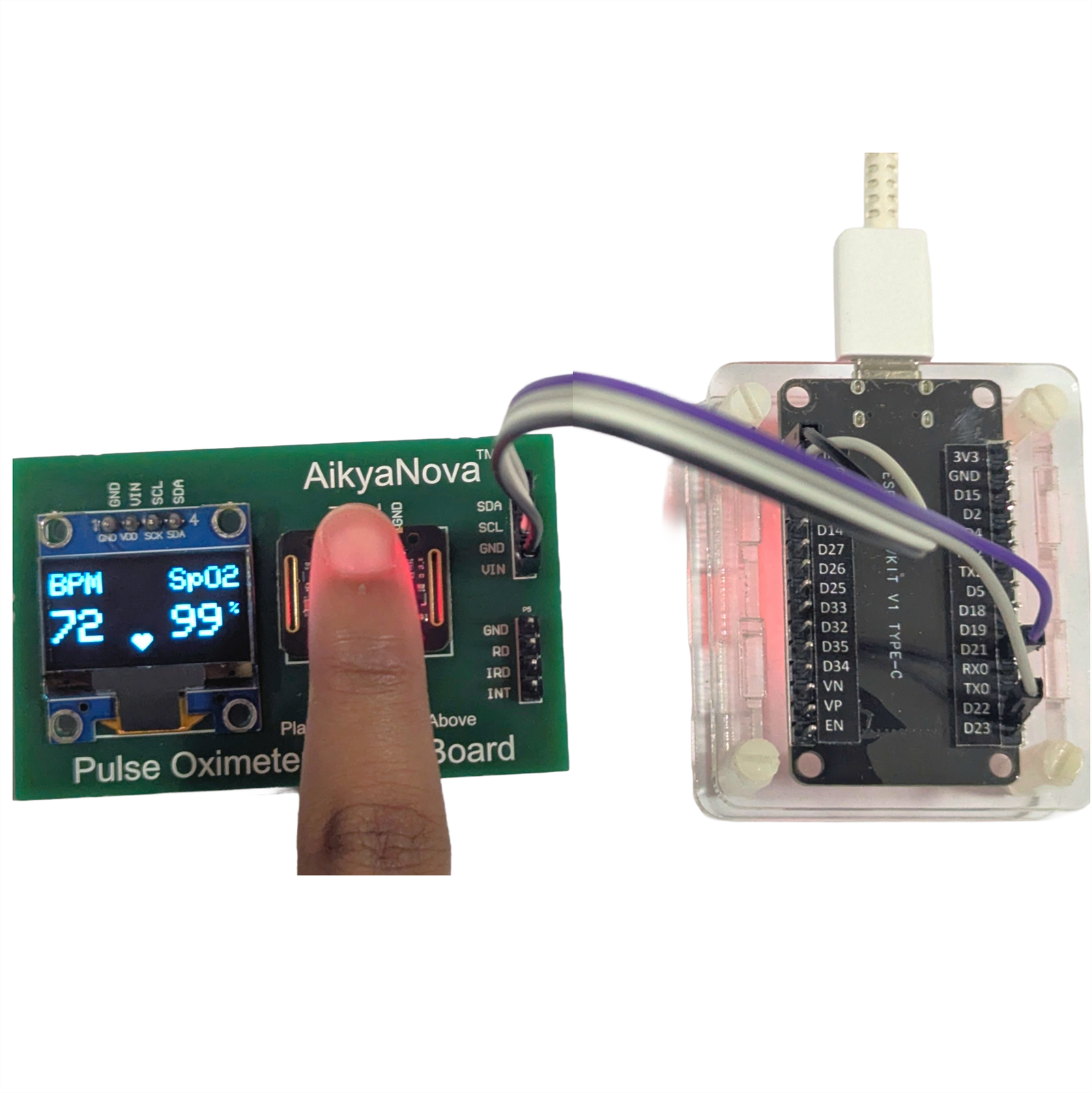

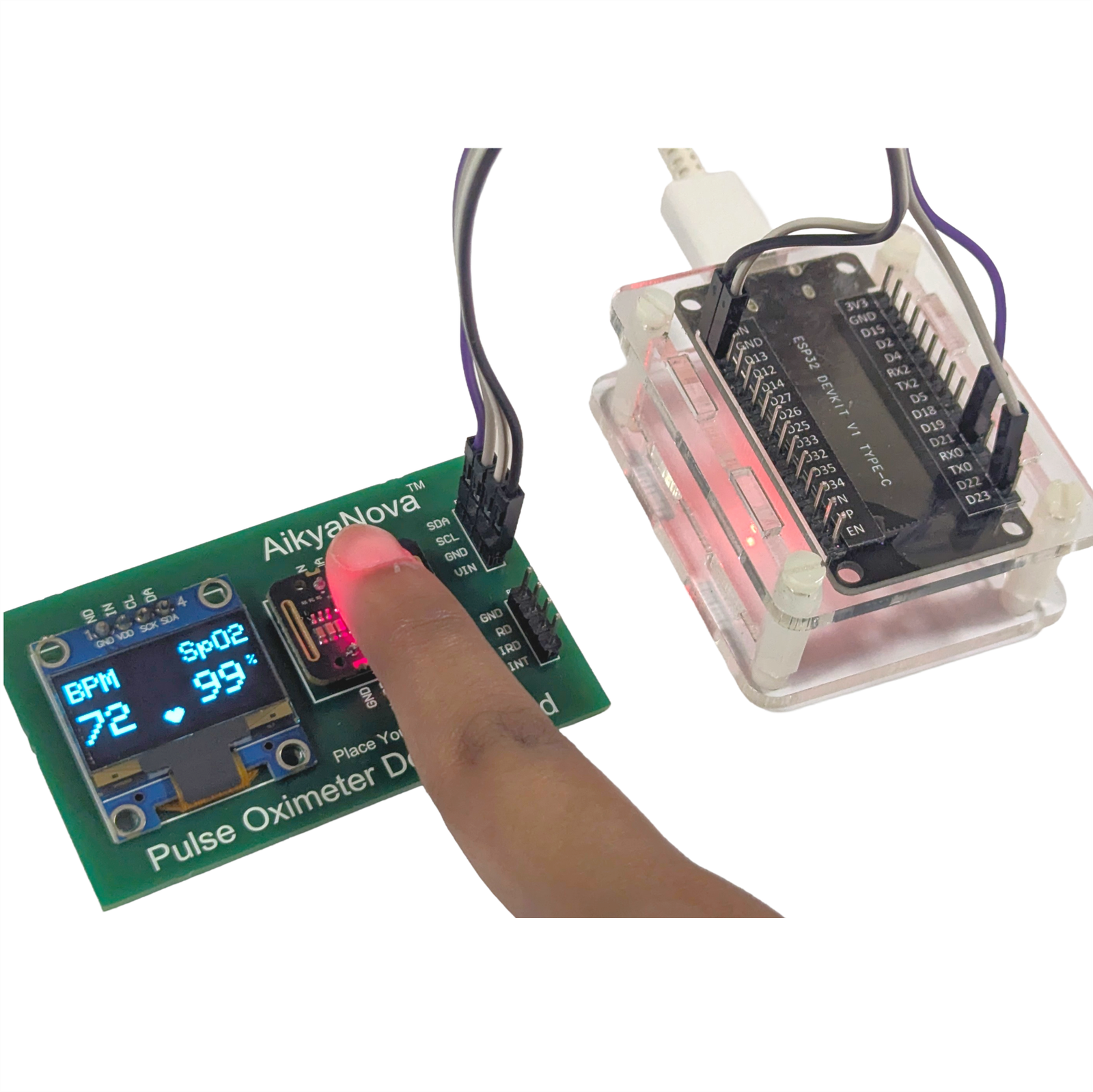

Demo Board + ESP32 + Acrylic Case
Complete protected kit — ESP32-WROOM-32 in sturdy acrylic enclosure
- MAX30102 PPG biosensor + 0.96" OLED
- ESP32-WROOM-32 · 240MHz dual-core
- USB Type-C (replaces micro-USB)
- Acrylic case — ESD safe, prototyping ready
- Wi-Fi 802.11b/g/n + BT 4.2 (Classic & BLE)
- Quality checked & tested before packing
- Free code & tutorials (GitHub)
The AikyaNova MAX30102 PPG SpO₂ Sensor Kit is a complete biomedical learning module designed for engineering students, makers, and STEM educators who want to explore heart rate and blood oxygen sensing without the hassle of complex assembly. Unlike bare sensor breakout boards, this kit comes pre-soldered with header pins — just plug it into your breadboard and you are ready to go.

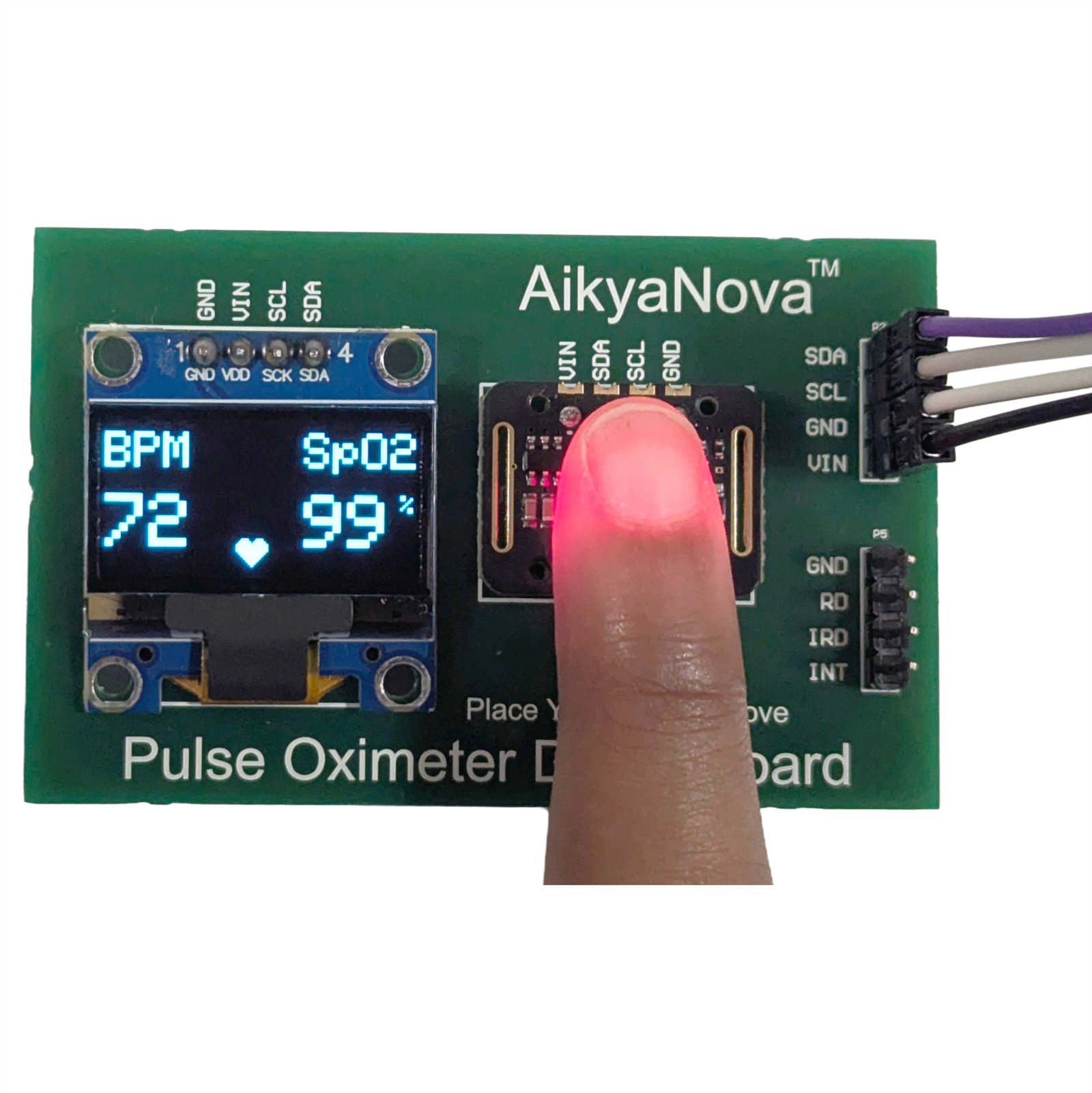

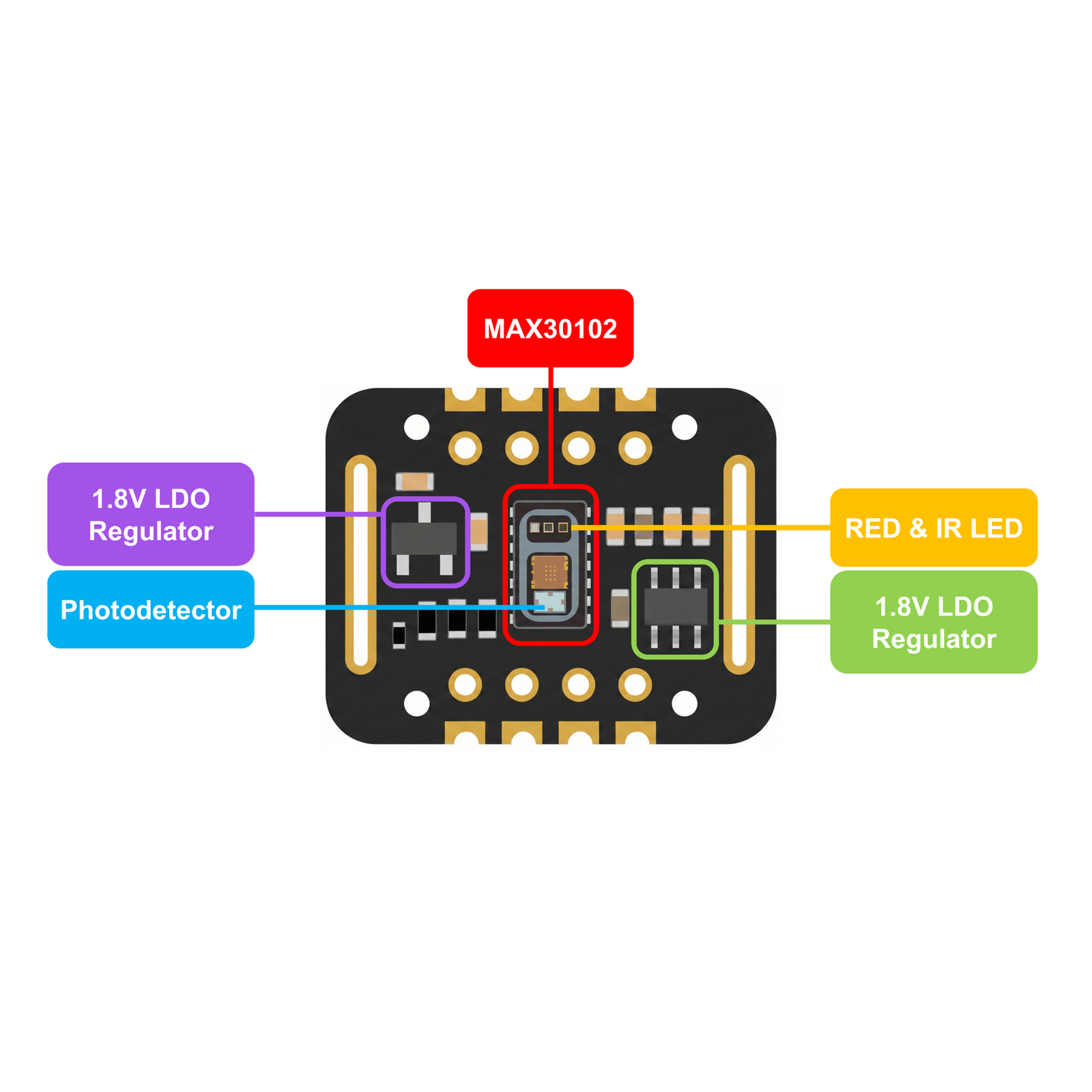

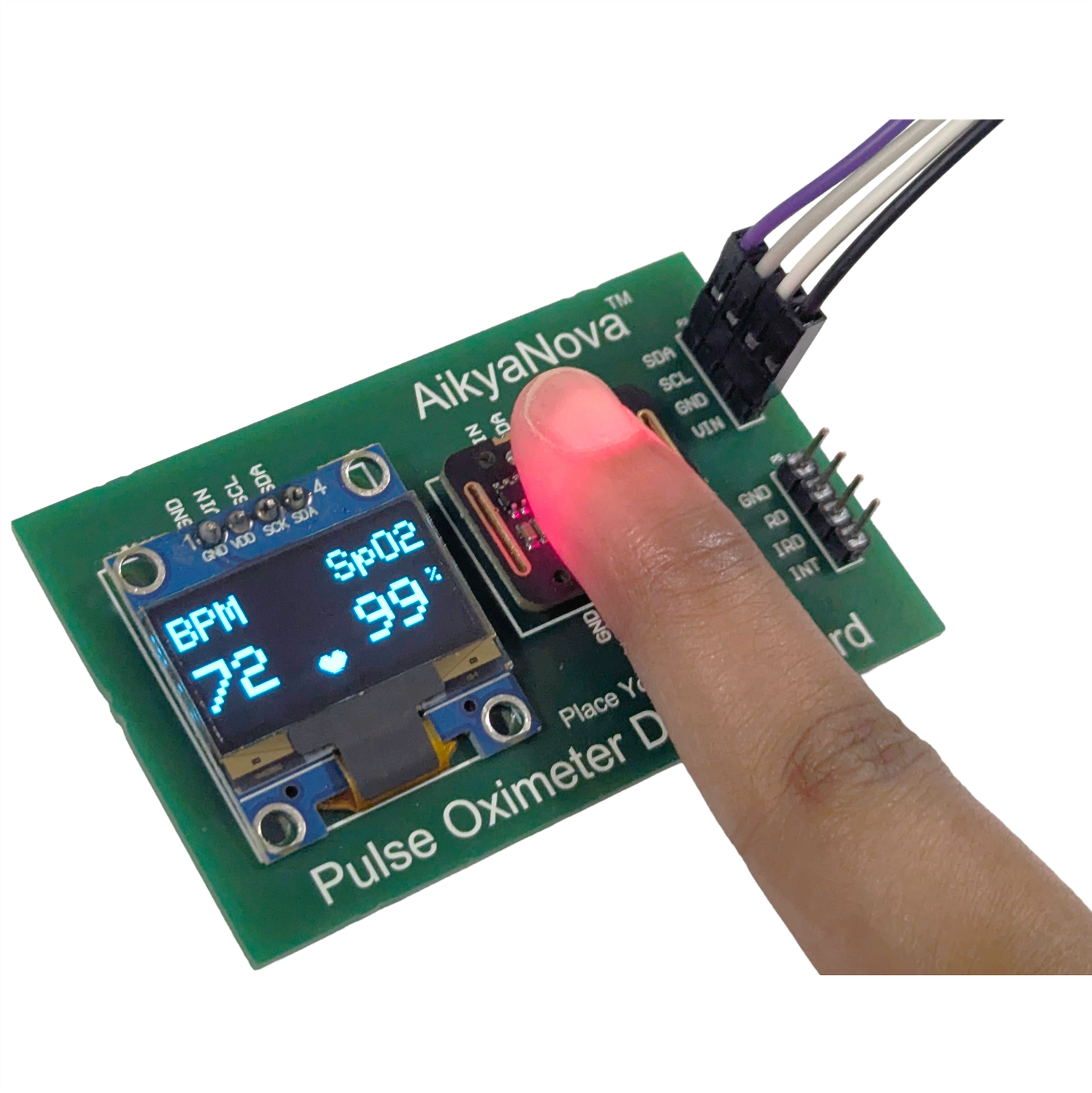

At the heart of the kit is the MAX30102 high-sensitivity PPG biosensor, which uses infrared and red LED-based photoplethysmography (PPG) to measure Heart Rate (BPM) and Blood Oxygen Saturation (SpO₂) in real time. Readings are displayed instantly on the onboard 0.96" OLED screen, giving you a complete standalone demo experience right out of the box.
Communication is handled over a standard I²C interface, making this kit compatible with virtually any 3.3V or 5V microcontroller. Whether you are building a college biomedical project, prototyping a wearable health sensor, or simply learning how PPG signal processing works, this kit gives you a solid hardware foundation to start from.
To get you up and running even faster, AikyaNova provides free downloadable sample code and step-by-step tutorials on GitHub — covering everything from basic heart rate reading to SpO₂ calculation. No hunting for libraries, no guesswork.
Please note: This is an educational demo board intended for learning and prototyping purposes only. It is not a certified medical device and should not be used for clinical diagnosis or patient monitoring.
Technical Specifications
Frequently asked questions
Who is this board for?
This board is ideal for engineering students, researchers, makers, and developers who want to prototype SpO₂ and heart-rate measurement systems. It's also suitable for proof-of-concept healthcare IoT projects and academic lab work.
Do I need the ESP32 variant?
If you already have an Arduino, Raspberry Pi, or another microcontroller, the standalone board is sufficient — it communicates over I²C. Choose the ESP32 variant if you want Wi-Fi or Bluetooth connectivity out of the box, or if you don't already have a development board.
Is the firmware open-source?
Yes. All purchasers receive access to the full source code on GitHub — including the Arduino library, ESP32 firmware, and example sketches. You can modify and extend it freely for personal and academic use.
